Intermediate Carrier And Bagasse Conveyor Chain

Categories	Mechanical Chain
Brand	ZMIE chain
material	steel
FOB port	Shanghai
Terms of Payment	L/C, T/T
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

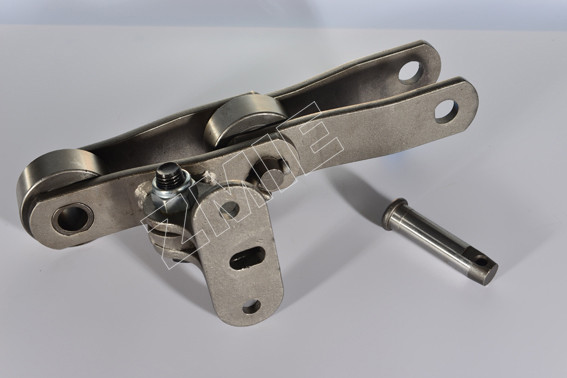

Intermediate Carrier And Bagasse Conveyor Chain

conveyor chain

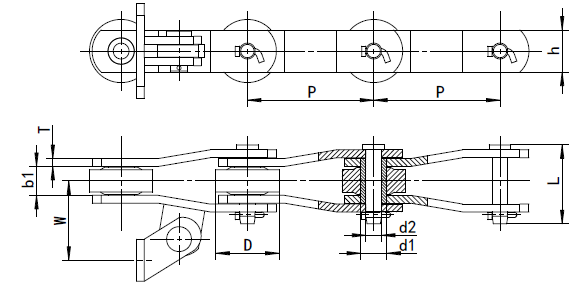

ZMIE Chain No.	Pitch	Inner depth	Plate thickness	Plate depth	Pin diameter	Pin length	Bush diameter	Roller diameter	Dimensions	Ultimate tensile strength
P	b1	T	h	d2	L	d1	D	W	Q
mm	mm	mm	mm	mm	mm	mm	mm	mm	KN
2184	152.4	34.9	9.5	50.8	22.23	95.2	31.7	76.20	91.9	356
09060	152.4	38.1	9.6	50.8	19.05	97.0	28.7	69.85	88.9	270
09061	152.4	38.1	9.6	57.1	19.05	97.0	28.7	69.85	88.9	380
09063	152.4	38.1	10.4	60.4	23.88	102.1	31.7	76.20	100.0	630
1796	152.4	38.1	9.6	57.1	22.10	99.0	31.7	69.85	88.9	450
2198	152.4	38.8	12.7	60.4	22.10	112.0	31.7	76.20	99.3	450
9184	152.4	38.1	12.7	63.5	23.88	12.8	31.7	76.20	98.4	787
9185	152.4	38.1	12.7	63.5	23.88	12.8	31.7	88.90	98.4	787
F9184	152.4	39.6	12.7	63.5	23.88	12.8	31.7	76.20	98.4	787
8184	203.2	45.9	12.7	69.8	25.40	96.7	38.1	88.90	81.8	750
B5509	228.6	37.8	9.6	57.1	22.23	76.4	31.7	76.20	79.2	450

FAQ

What's Your Packing Method?

For our regular products like X348, X458, X678 forged rivetless chain, trolley, attachment packed into plywood case which no need fumigate, for the assembled conveyor chain and forged fork chain with flight packed into pallet,for CC600 casting chain two packing methods are available.
